DESCRIPTION:

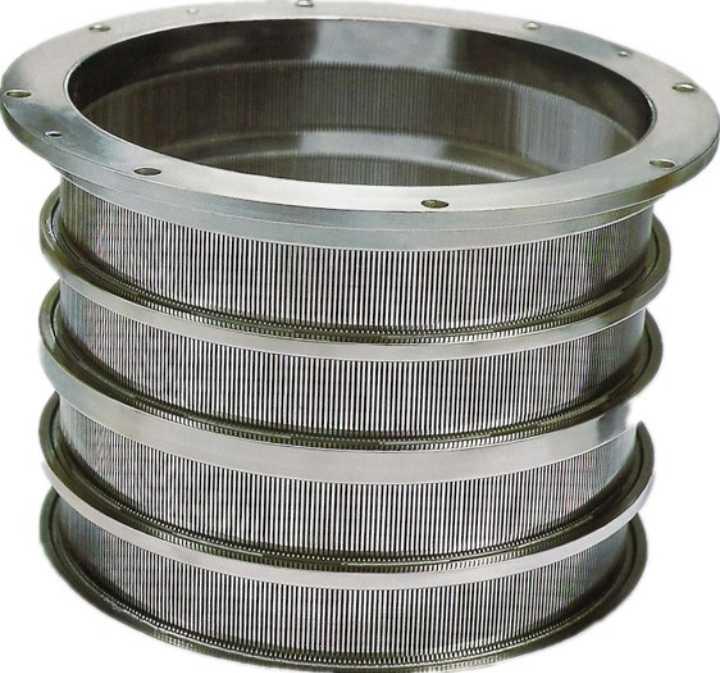

Wedge Wire Slotted Screen Baskets for Pressure Screen Our screen baskets are widely used for paper mills. The screen basket can be divided into inflow and outflow which are mainly used for wood pulp screens. From the slag removal to the coarse screen basket, the combination of the hole screen and slotted screen can achieve high-quality screening results. With advanced technology, high machining accuracy, and long service life. Technical Parameters: Material: SS304, SS316L Slot: 0.10-0.55mm Chrome Plated: 0.1-0.2mm Plate Thickness: 6-12mm Working Pressure: 6 bar/4 bar Weight: 100kg/m2 Warranty Life: 3-8 months Structure and Features: 1. The pressure screen basket is composed of a sieve perforated plate, an overflow bucket, and a non-perforated plate. 2. There are many small holes distributed on the screen plate, and the vapor passes through the small holes from bottom to top, transfers heat and mass through the liquid layer on the tray, and then rises. 3. The liquid flows through the tray according to a certain route, and the liquid is held by the vapor with a stable flow rate and flows through the overflow hopper to the non-porous plate (liquid receiving tray) of the next tray. 4. The thickness of the liquid layer is determined by the height of the inlet baffle and outlet baffle on the tray.
