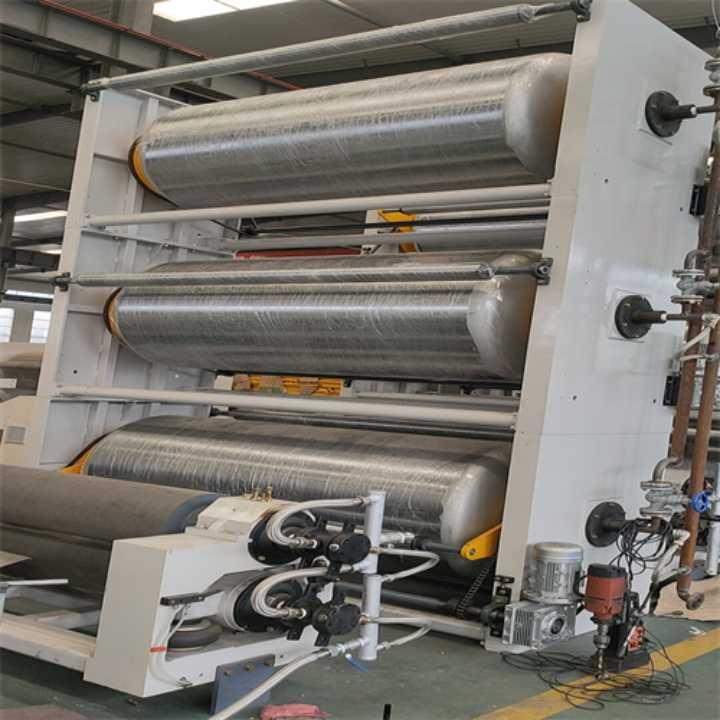

Pre-Heater Machines
DESCRIPTION: |
|
Pre-Heater Machine for corrugated cardboard line. Preheater electro motion heating angle adjustment. Adjustable range of 60-270. All rollers are well ground and hard chrome plated, glabrous and durable. Adopt dishing seal or plat design. Insure reel paper is heated on average. Parameters: Width Dimension (LxWxH) mm Weight T Gross Power kW 1400 2590 x 1050 x 1250 2.1 2.05 1600 2790 ×1050 ×1250 2.3 2.05 1800 2990 ×1050 ×1250 2.5 2.05 2000 3190 x 1050 x 1250 2.7 2.05 2200 3390 x 1050 x 1250 2.9 2.25 Features: 1. Pre-heater diameter 1000 mm/1100 mm/1200 mm. butterfly head makes heating equal. 2. Pre-heater designed to be rotary at a fixed speed, which makes the temperature of the surface equal and passes the heat to the paper completely, and also reduces heat loss and makes the paper not easy to be broken off. 3. Flange is used for the steam rotary joint. 4. Made according to a national standard of pressure container I, a test certificate is followed. 5. Paper guide roll: φ140 mm, one fixed, the other travel outside of preheating roll to control the heating surface. the parallelism of the travel paper guide roll can be adjusted. 6. With 0.55 kW/0.75 kW motor and 2 sets of worm wheel decelerator. |
|
COMMERCIAL DETAILS: |
|
| Min Order Qty. | 1 Set |
| Avg. Lead Time | 30 Days |
| FOB Price * | US$5000 / Set |
| Payment Options | L/C, T/T |
| Payment Terms | 50% T/T in advance, the balance before shipment. |
| Country of Origin | China |
| Shipping Port | Tianjin, Qingdao, Shanghai, Ningbo |
MORE DETAILS: |
|
| Model No. or Name | HT-Pre-Heater |
| Brand Name | Huatao |
| Supply Capacity | 30 Sets / Month |
| Packaging | Wrapping film |
| Sample Offered? | No |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
