DESCRIPTION:

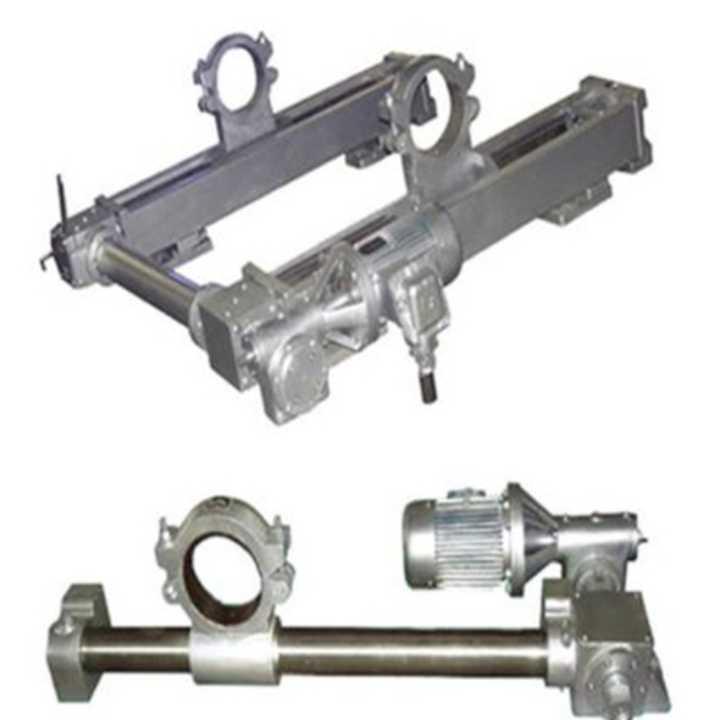

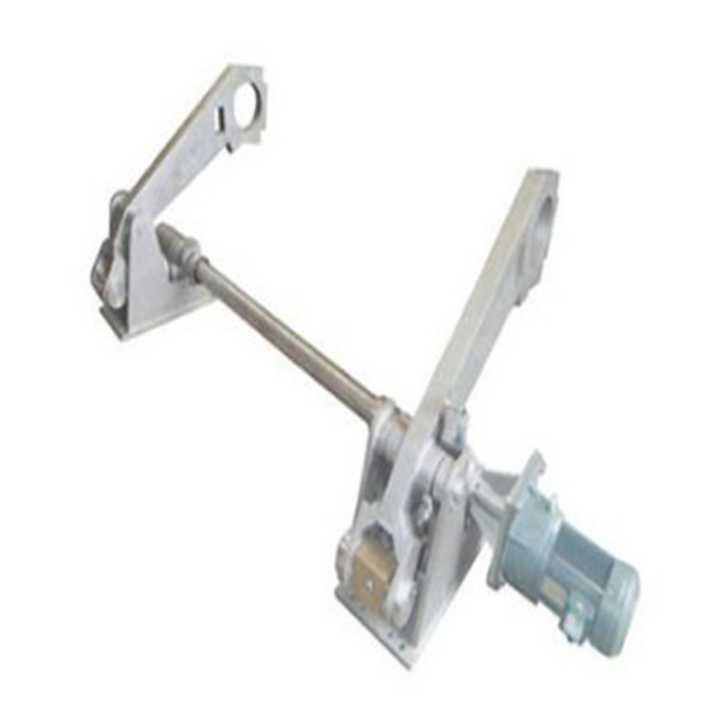

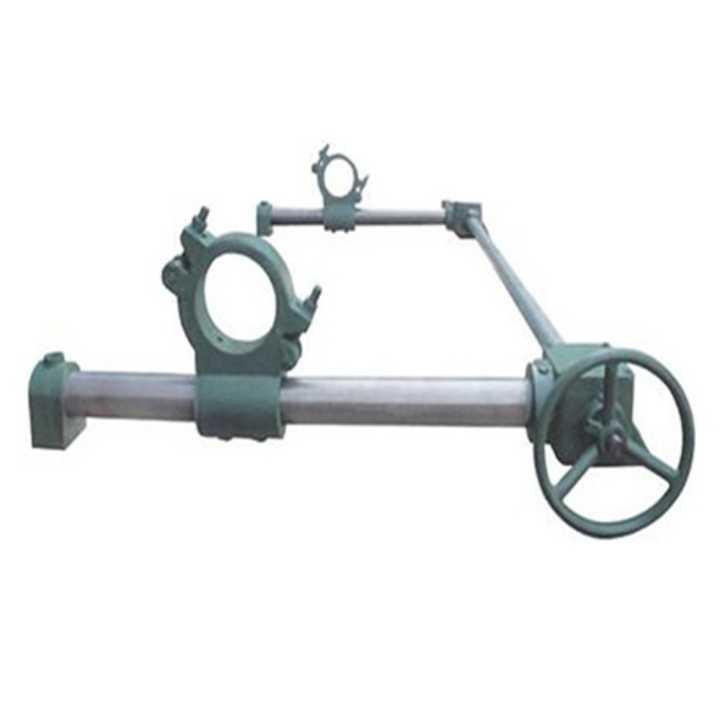

Felt tensioner can be installed in drying/wet section.Highly compact can be installed in any position.Made in stainless steel or painted steel.Available standard 800-1000 mm strokes and various sizes according to the machine width.Inserted into the line for the production of paper, its specific function is to maintain the tension of the wire/felt during the sliding phase of the paper, in non-stop production. As the wire/felt becomes loose, the load cell installed in the wire/felt circuit or installed on the stretcher, detects the tension and sends the signal to the PLC of the control panel which moves the tensioning roll until the wire/felt automatically returns to the set tension.The correct tension of the wire/felt improves the quality of the paper. Specifications: Width: 1092-5600 mm Vehicle speed: 100-1500 m/min Felt Tension: 2-10 kN/m Felt tensioner: flexible action, small resistance, automatic guarantee of constant tension, stable performance. Press section tensioner: small resistance, sensitive action, high control precision, safe and reliable. Dryer tensioner: high sensitivity, stable performance, high precision, and automatically ensure constant tension of the dryer. Advantages: 1. High Grade casting and heavy duty Gear Box gives long life. 2. All Gear Box, Shaft & Spindle fitted with Taper Roller Bearings and Heavy Duty operating Wheel gives free movement to the Stretcher. 3. Star Coupling fitted with operating Wheel decrease the felt setting time, NO fitter required to setup the both side distance. 4. Geared Motor attachment on demand, save the time and easy to operate.
