DESCRIPTION:

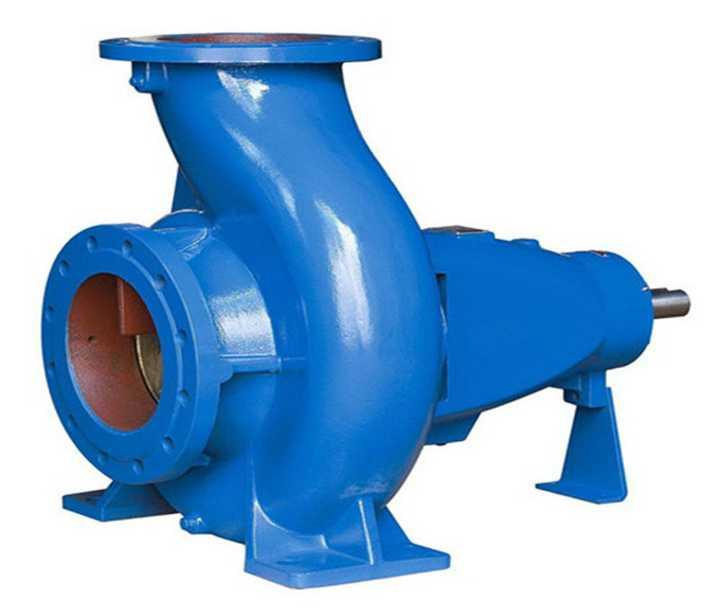

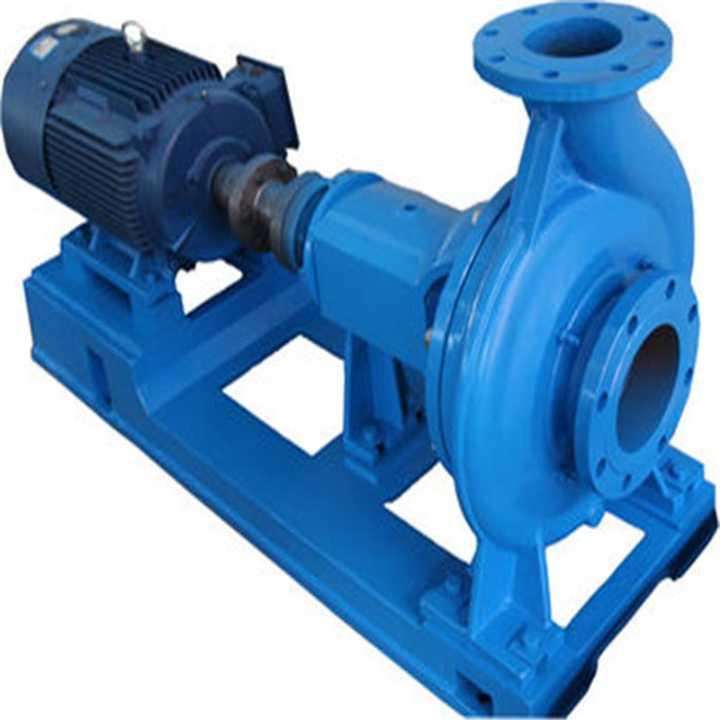

Paper Pulp Centrifugal Pumps for stock preparation Paper Pulp Centrifugal Pumps are used for The Pulp and Paper mills to deliver the pulp and water. And the Pulp Pumps as the key equipment during the pulp stock preparation. Single-stage centrifugal pump with full-open impeller design. Suitable for conveying slurry or clean water with a pulp concentration of 0-6%. The scope has a pump, base frame for placing the pump, and standard motor, with screw coupling, coupling protection cover, and anchor bolts. Technical Parameters: Pump body and cover: wear-resistant stainless steel Impeller, sealing ring, bushing: wear-resistant stainless steel Bearing frame: Cast Iron HT250 Pump shaft: Stainless steel 2Cr13 Bearing: HRB Impeller form: fully open Shaft seal form: packing seal, external sealing water is required Lubrication form: oil lubrication Transfer method: Direct coupling Advantages: 1. Fully open, three-blade impeller, large flow channel, strong performance without clogging. 2. Wear-resistant linings at the suction and discharge ends of the impeller are used to protect the eddy current casing. 3. The new protective cover design makes it easier to disassemble. 4. Brand new chassis design, stronger and more convenient for coupling adjustment.
