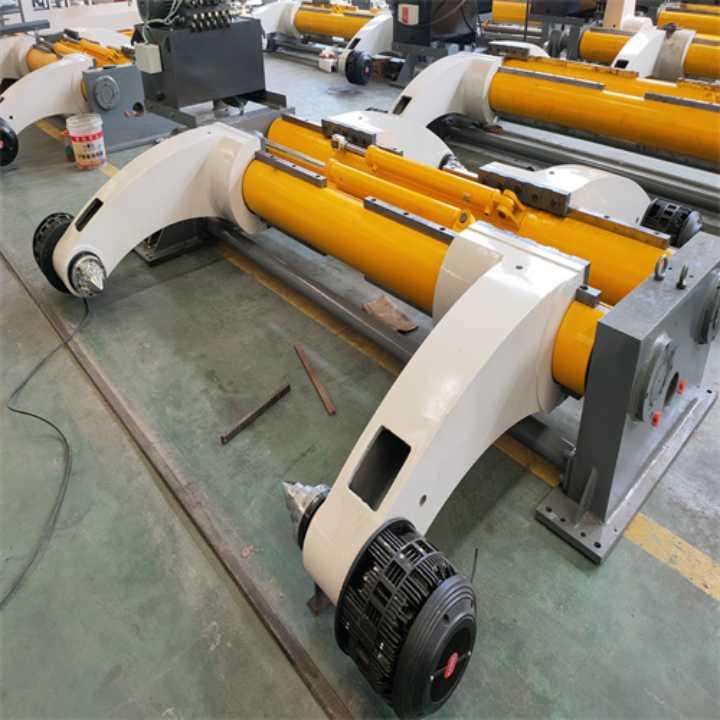

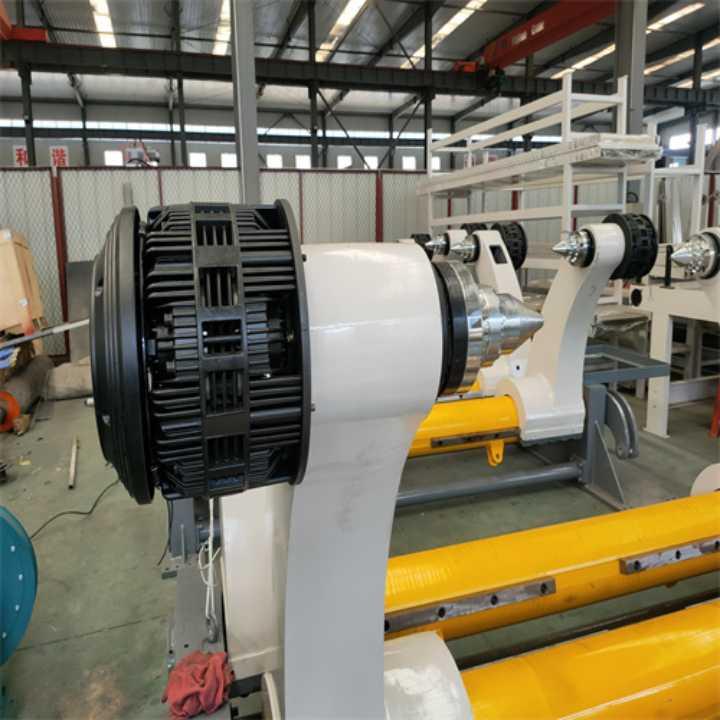

Hydraulic Shaftless Mill Roll Stands
DESCRIPTION: |
|
Mill roll stand specially used for Cardboard corrugated production mills, sometimes also used for kraft paper rewinder for supporting the paper jumbo rolls with stability speed. Specifications: Maximum working width:1000mm-2500mm Minimum working width:900mm Maximum clip diameter:1500mm Bracket spindle diameter:φ242mm/φ270mm Maximum working pneumatic pressure:0.6-0.9Mpa Maximum support weight (one side):3T/5T Air source working pressure (Mpa):0.4-0.8Mpa Advantages: 1. Each stand is equipped with four direction buttons, which are easy to operate. 2. 2 rolls of paper can be loaded at the same time to realize non-stop paper change. 3. The whole machine is controlled by 6 cylinders full hydraulic pressure, the hydraulic control arm lifts, clamps open, and traverses left and right. 4. Tension control: using multi-point pneumatic brakes, good braking performance, and fast heat dissipation. 5. The collet adopts internal expansion or tooth design to reduce damage to the paper core and to use the base paper more thoroughly. 6. One hydraulic support with two trolleys (trolleys) and one track. |
|
COMMERCIAL DETAILS: |
|
| Min Order Qty. | 1 Piece |
| Avg. Lead Time | 30 Days |
| FOB Price * | US$5000 / Piece |
| Payment Options | L/C, T/T |
| Payment Terms | 100% in advance |
| Country of Origin | China |
| Shipping Port | Tianjin, Shanghai, Qingdao |
MORE DETAILS: |
|
| Product Condition | New |
| Model No. or Name | HT-63 |
| Brand Name | Huatao |
| Supply Capacity | 50 Pieces / Month |
| Packaging | Wooden Box |
| Sample Offered? | Not Applicable |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
