DESCRIPTION:

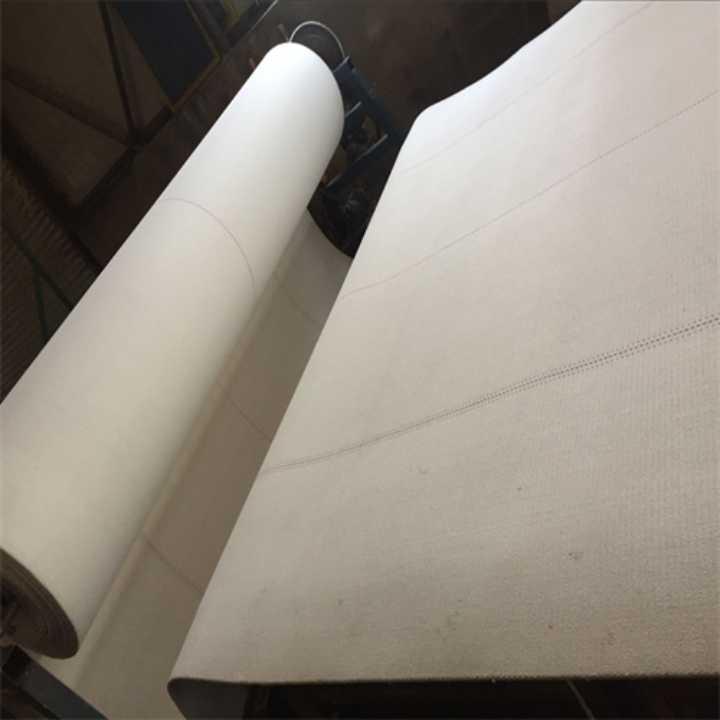

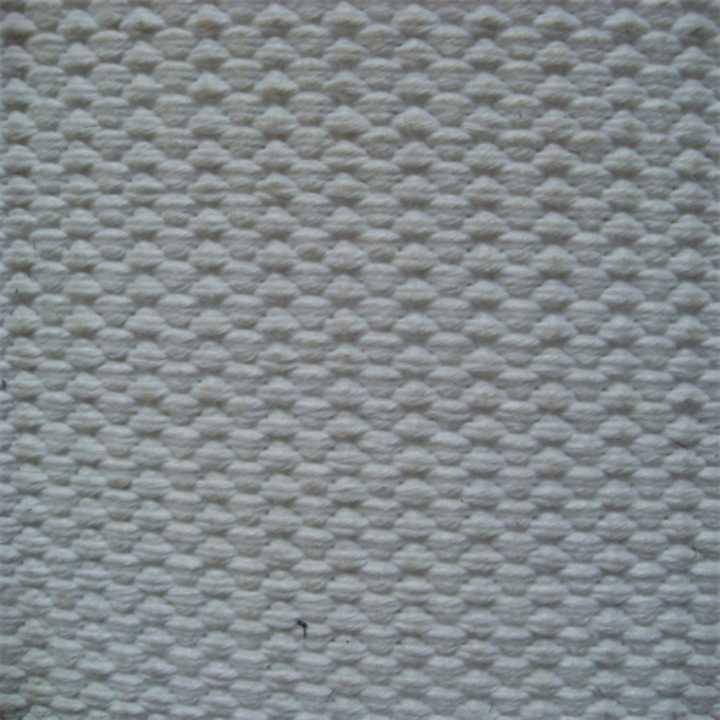

Corrugator belts have been specially developed for use in double facers in corrugating systems. Their main tasks are smooth transport and the best possible drying of the corrugated board. The belts are exposed to substantial stresses from temperature, contact pressure, friction, tensile stress, and moisture. corrugator belts consist of multiple-layer fabrics. The rip, heat, and abrasion-resistant fibers give the belts an excellent movement and transport characteristic. This guarantees security and reliability during your production processes. Specifications: Material: 100% synthetic polyester Thickness: 8-10mm Width range: 1400mm - 3200mm Length: 80 meters Heat-resistance: 240℃ (the kevlar edge up to 350℃） Tensile strength: 70Mpa Coefficient of friction: ≥ 0.40µ Weight: per unit (7.5±0.3)kg/㎡ Air-permeability: 40mm water Column 2.0m³/㎡ min Seam: Clipper with rubber coated /Hot JAW lacing Edge: 100mm - 400mm in woven aramid edge reinforcement (kevlar) Particularly for frequent changes of width. Suitable position: Top belt Advantage: Weaving texture clear, neat edge, stable dimension, heat and pressure-resisting, anti-static, outstanding traction, surface, and seam-sealing even. Great absorbency, drying, and anti-static enable corrugated board transport flawlessly and efficiently in the production line.
