DESCRIPTION:

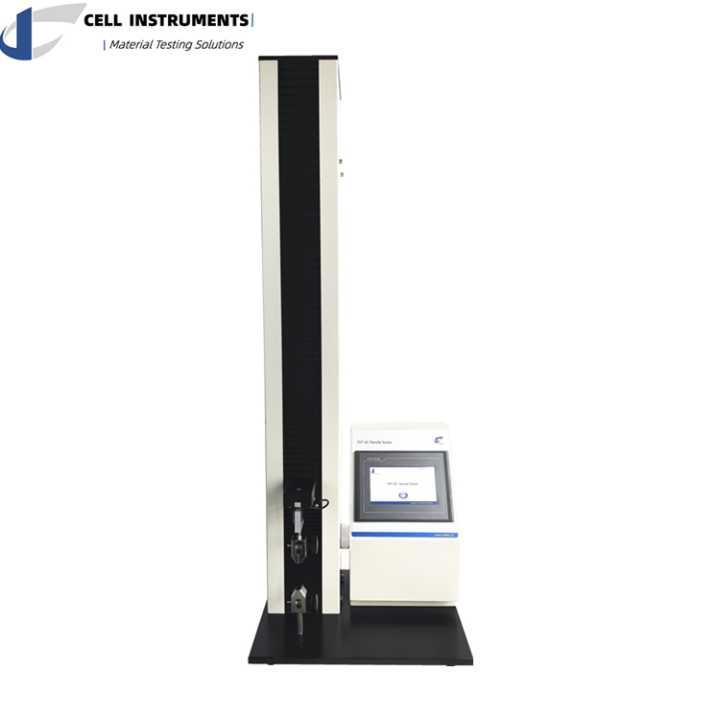

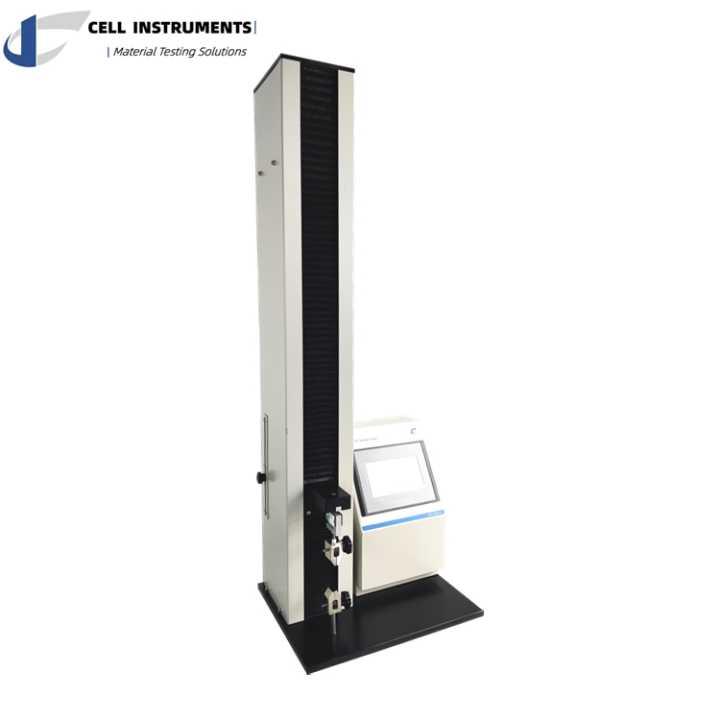

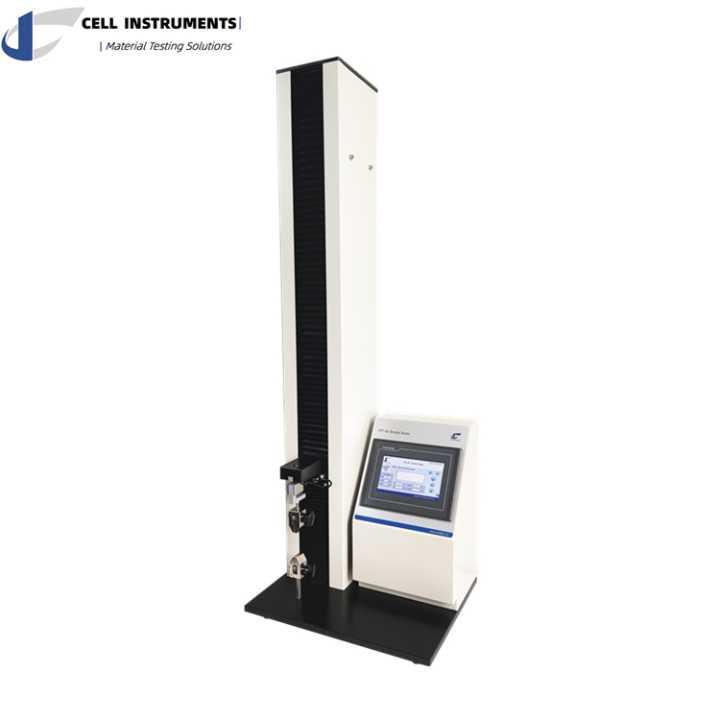

TST-01 Tensile Tester Applications: The TST-01 Tensile Tester serves the purpose of assessing various attributes of materials like plastic films (requiring distinct clamps or fixtures), composite materials, soft packaging materials, plastic flexible tubes, adhesives, adhesive tapes, label stickers, medical plasters, release paper, protective films, combined caps, aluminum foil, diaphragms, backing sheets, non-woven fabrics, rubber, and paper. Its applications encompass measuring tensile, peeling, deformation, tearing, heat sealing, adhesion, puncture force, opening force, and other performance characteristics across these materials. Technical Features: This unit is under PLC control (with industrial-level stability) and operated through an HMI touch screen. The use of a precision ball lead screw mechanism ensures consistent and accurate speed and displacement control. It features a specially designed program catering to tests including break, tension, elongation, seal strength, 90° peeling, and 180° peeling. The key features include: 1. A 7-inch HMI touch screen for user-friendly operation. 2. PLC control for efficient functioning. 3. Precision ball lead screw for reliable results. 4. Adjustable test speed. 5. Compatibility with multiple fixtures. 6. Equipped with a limiting device and automatic returning function. 7. Availability of various test items. 8. Optional inclusion of a microprinter. 9. RS 232 port for data communication and professional software (optional ). Main Parameters: Test Range: 0-500N (or 50N, 100N, 200N, etc) Stroke: 800mm (customizable for other strokes) Test Speed: 1~500mm/min Displacement Accuracy: 0.01mm Accuracy: 0.5% Full Scale Sample Width: 27mm (optional width available) Control: PLC and HMI Screen Data Output: screen, Microprinter (optional), RS232 (optional) Major Standards: ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113
