DESCRIPTION:

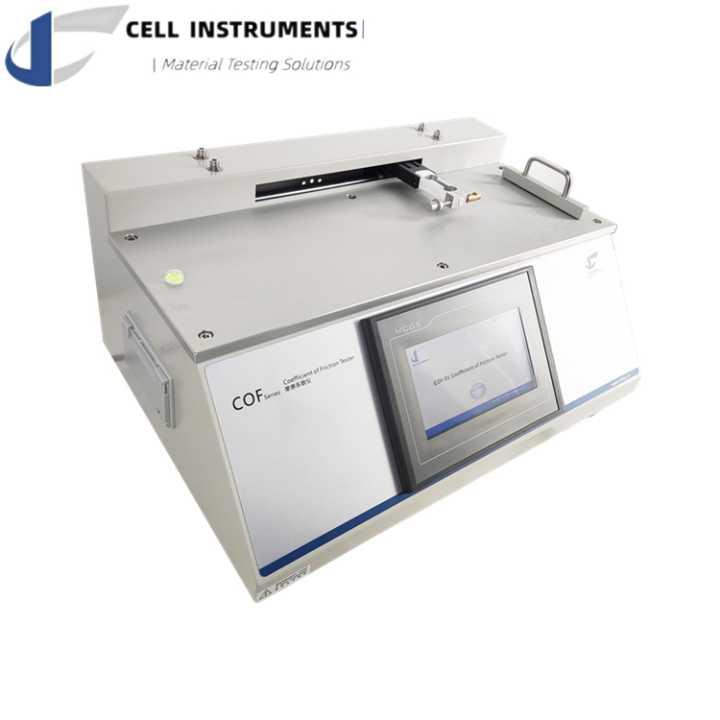

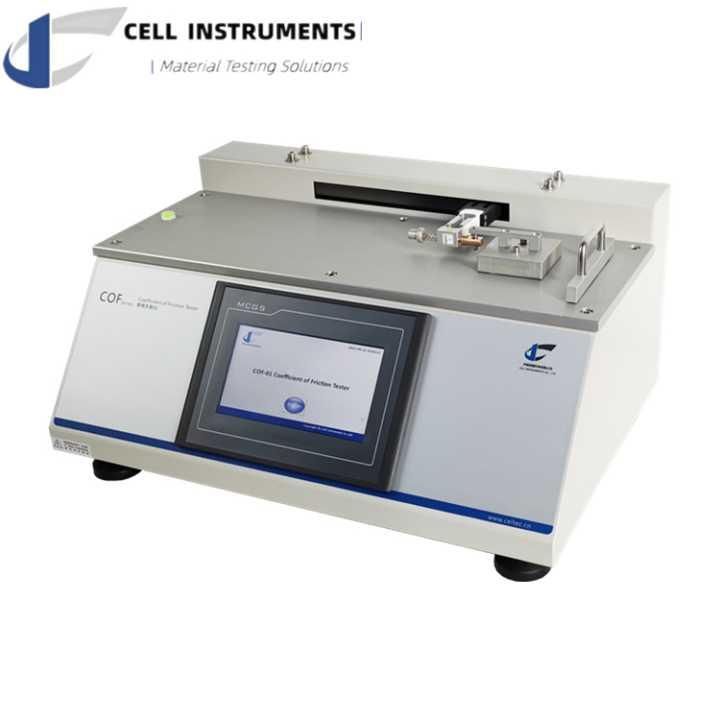

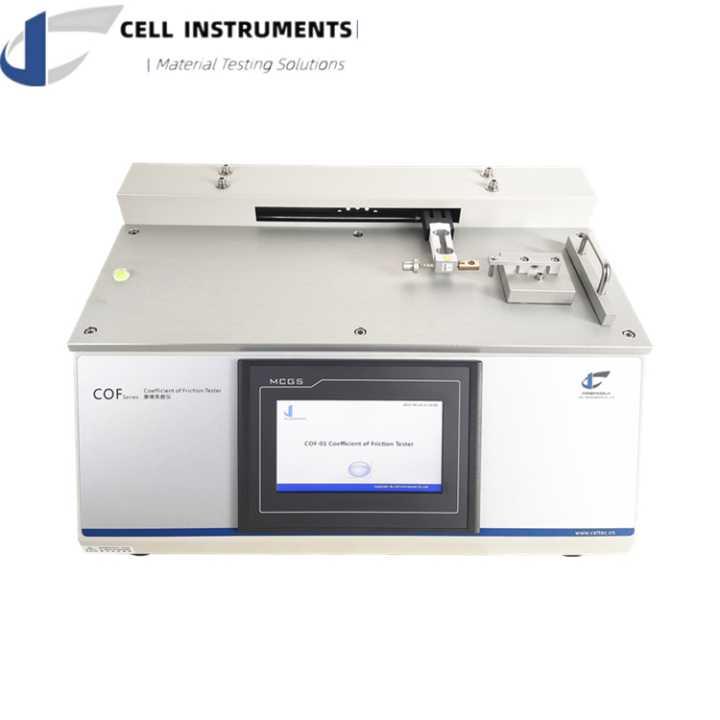

Applications: The COF-01 Coefficient of Friction Tester is designed to measure both static and kinetic coefficients of friction for a wide range of materials. These materials include plastic films, sheets, rubber, paper, paperboard, woven and non-woven fabrics, metal-plastic composite belts used in communication cables and conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials, and tires. The tester can also be adapted or modified to accommodate various other material types and testing standards. Standards: ASTM D1894, ISO 8295, TAPPI T816, GB 10006 Technical Features: The COF-01 Coefficient of Friction Tester has been aiding the flexible industry since its inception. 1. It employs PLC control and an HMI touch screen for interaction. The design, of industrial caliber, assures stability and extended service life. 2. The driving mechanism is powered by a stepper motor and a precision ball lead screw. 3. It exhibits real-time test curves, and automatically records maximum, minimum, and average test results. 4. Both static and kinetic coefficients of friction are gauged. 5. Compliance with multiple test standards is incorporated. 6. A dot matrix microprinter is integrated. 7. The test plane is constructed entirely from aluminum. 8. It offers RS232 output and professional software(Optional). 9. Local language display is supported(Customized). Main Parameters: Load Cell 5 N(or as required) Accuracy 0.5 F.S. Sled 200±1g (or as required) Sled Size 63.5mm*63.5mm (or as required) Test Speed 100mm/min (ISO), 150mm/min (ASTM) Dimensions 540mm(L)*380mm(W)*240mm(H) Weight NW 21kg Power 110~220V 50/60Hz
